CryoCube™ VIP

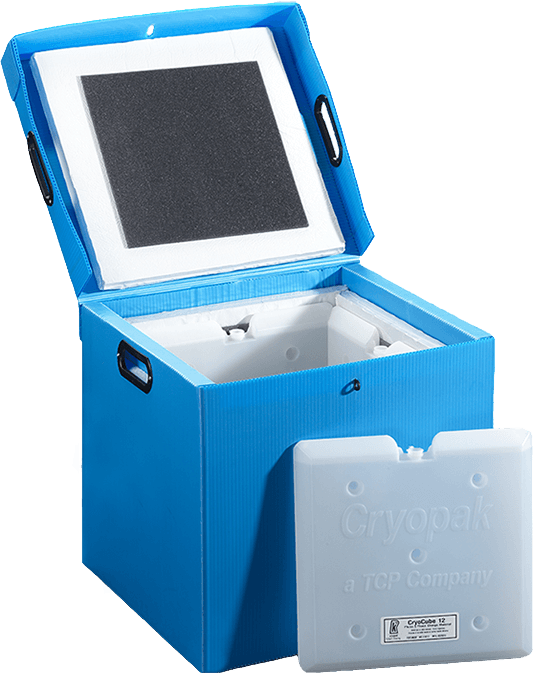

Vacuum insulated panels (VIP) provide the highest thermal insulation quality available. The insulated panels are protected with plastic wrap and foam padding for increased durability. With increased duration capabilities and a rugged PCOR plastic corrugated outer shipper for increased reusability, the CryoCube VIP is the most robust option, maintaining a controlled internal environment for up to 120 hours.
FEATURES & SPECIFICATIONS
- Available in both 2-8°C and CRT configurations
- Maintains temperature range up to 120 hours
- Security closure for use with lockout-tagout (LOTO) seals
- Highly reusable
- Ideal for return logistics programs
Standard sizes and custom sizes available.
Please contact our sales support for your specific needs.
Item # | Product Name | Packout Type | Duration (Hours) | Corrugate ID L x W x D (in) | Payload ID L x W x D (in) | Weight (lbs) | Wall (in) | Pallet Qty |
|---|---|---|---|---|---|---|---|---|
FCUB00017 | CryoCube VIP 6-1R, 72 | Universal | 72 Summer/ 96 Winter | 10.5 x 10.5 x 10.5 | 6 x 6 x 6 | 12.9 | 1 | 84 |
FCUB00019 | CryoCube VIP 10-1R, 96 | Universal | 96 Summer/ 96 Winter | 14.5 x 14.5 x 14.5 | 10 x 10 x 10 | 29.9 | 1 | 16 |
FCUB00022 | CryoCube VIP 12-1R, 120 | Universal | 120 Summer/ 120 Winter | 16.5 x 16.5 x 16.5 | 12 x 12 x 12 | 41.6 | 1 | 16 |
